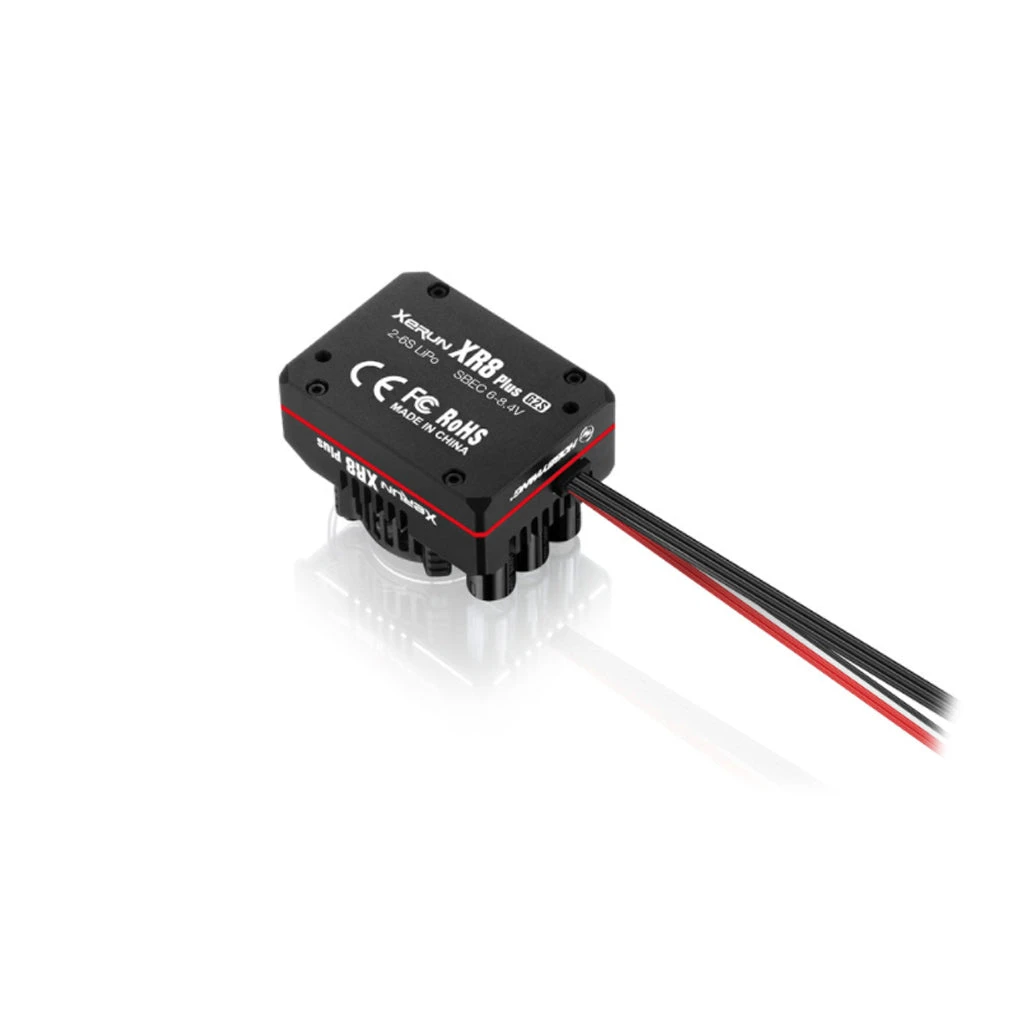

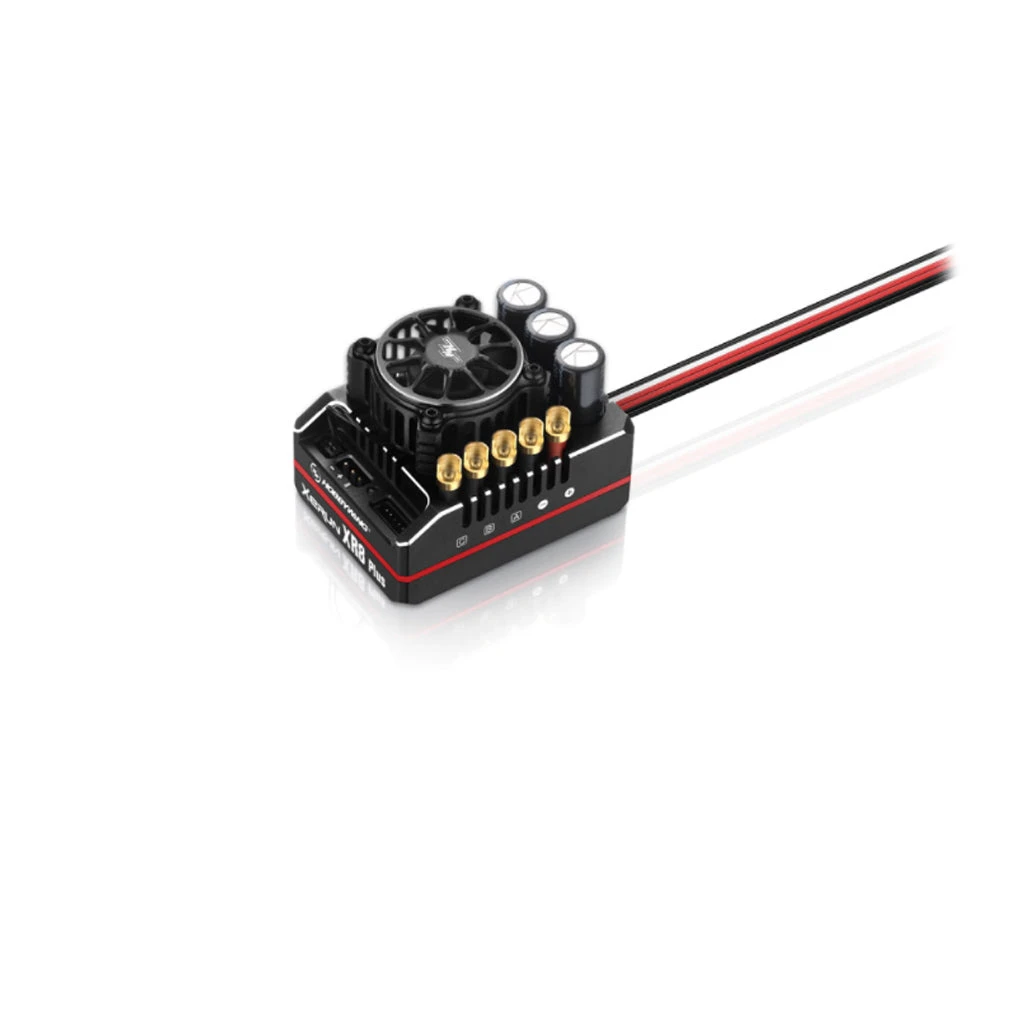

Hobbywing Xerun XR8 Plus G2S BL ESC

Specifications

• Scale – 1/8th
• Brushed/Brushless – BL
• Sensored/Sensorless – SD
• Waterproof – No
• Cont./Peak Current – 200A/1080A
• Input Voltage – 2-6S Lipo
• BEC Output – 6-8.4V Adjustable, Continuous/Peak Current: 6A/15A(Switch-mode)
• Black-11AWG-200mm*2

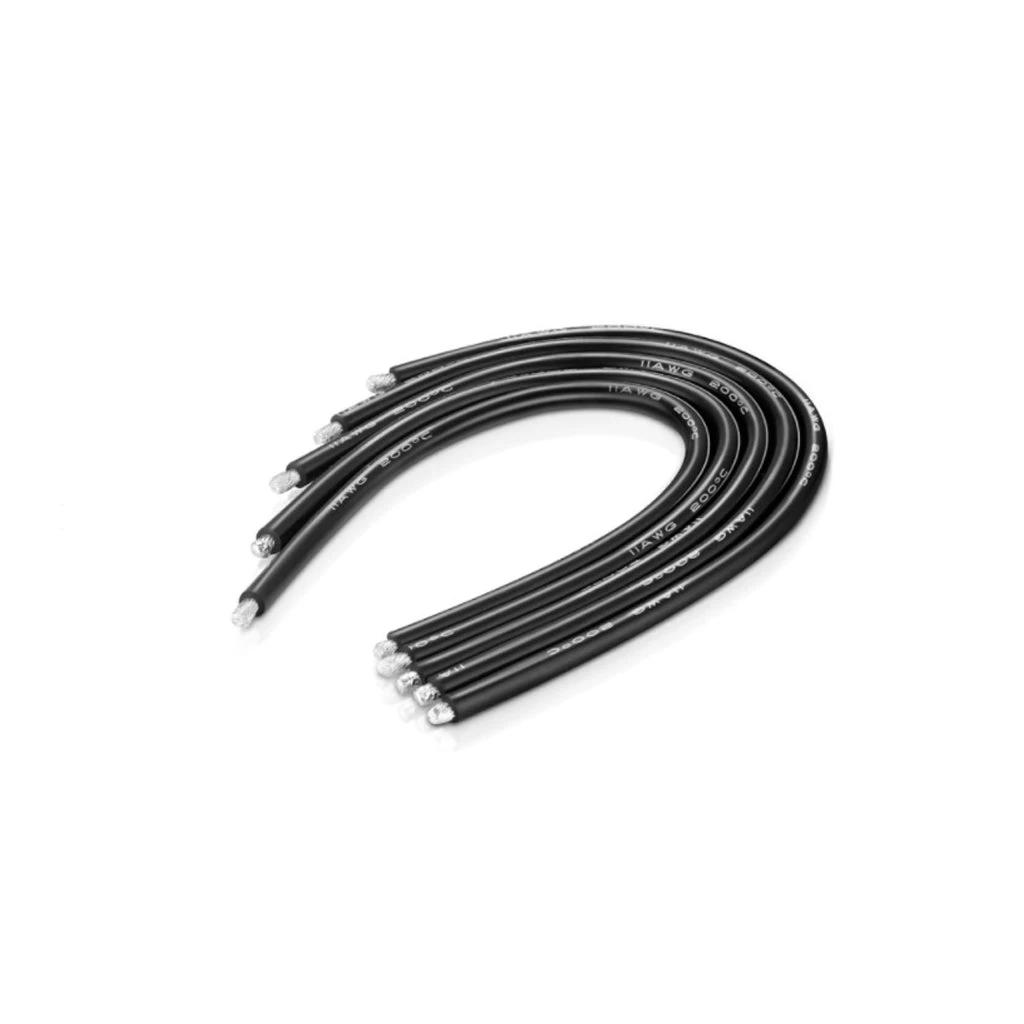

• Output Wires – Black-11AWG-200mm*3
• Input Connectors – No
• Output Connectors – No
• Fan – Size – 30x30x10mm – Voltage Range – 5-8.4V

Powered by

Powered by BEC

ESC Programing via

SET Button on ESC – Not Supported

LED Program Box – Not Supported

LCD Program Box – Supported

OTA Programmer – Supported

Programming Port – Independent programming port

Firmware

Firmware Upgrade – Supported

Size & Weight

Size – 56.1mmx42.1mmx38.5mm

Weight

122g(w/wires)

Applications

Applications

SL BL Motors
SD BL Motors

Vehicles

1/8th On-Road/Off-Road/Truggy Racing

KV Rating/T Count

4S LiPo： 4268/4274≤3000KV
6S LiPo：4274≤2400KV
