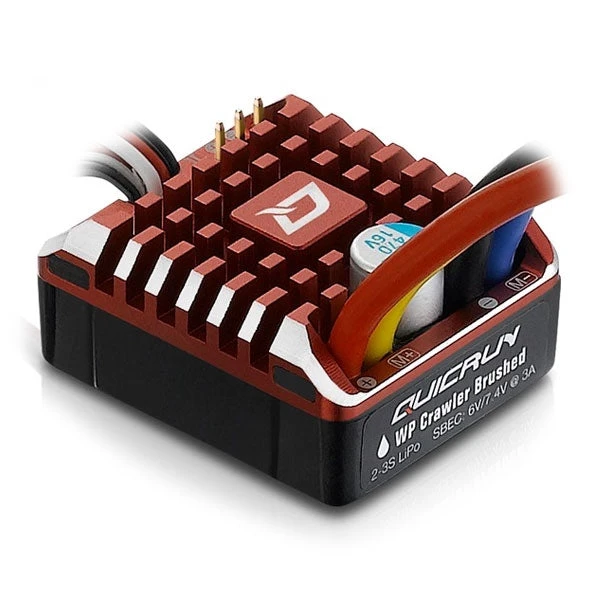

Hobbywing Quicrun WP1080 Waterproof Brushed Rock Crawler ESC 80amp

Special Design for 1/10th, 1/8th Crawlers
The reliable hardware combined with powerful software (features an array of programmable parameters like start force, drag brake rate, and etc.) creates an ideal power solution to 1/10th, 1/8th rock crawlers.

Adjustable PWM Frequency & Advanced DEO/Freewheeling Technology
The adjustable PWM frequency combined with advanced DEO/freewheeling technology guarantees users great throttle linearity and driving feel.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the WP-Crawler-Brushed to be used in all weather conditions without any issue of damage caused to the ESC from water or debris.

Excellent Braking Performance
Hobbywing’s innovative, fine-tunable drag brake rate and adjustable drag brake and brake force greatly improve the brag brake and allow users to have the excellent braking performance.

Super Internal BEC
The built-in switch mode BEC with a maximum output of 6A and voltage adjustable between 6V and 7.4V allows the use of various standard servos, high voltage servos and other peripherals.

15 Programmable Parameters
The WP-Crawler-Brushed, which features 15 programmable parameter items, is applicable to various vehicles and tracks.

Separate Programming/Fan Port
The separate PRG/FAN port on the ESC can power an external fan to maximize cooling performance or connect the ESC to a LED program box for ESC programming.

A LED Program Box is Included
A standard, dedicated LED program box (included in the box) allows users to program the WP-Crawler-Brushed easily.

Type
Scale – 1/8th & 1/10th
Brushed/Brushless – Brushed
Waterproof – Waterproof

Specifications
Cont./Peak Current – 80A/400A
Input Voltage – 2-3S Lipo/5-9 Cell NiMH
BEC Output – Switch Mode: 6V/7.4V@3A

Wires & Connectors
Input Wires – Red-14AWG-200mm*1 / Black-14AWG-200mm*1
Output Wires – Blue-14AWG-200mm*1 / Yellow-14AWG-200mm*1
Input Connectors – XT60 Connectors
Output Connectors – No
(Note: All the wire length above is the original length not the length you see from the outside.)

ESC Programing via
SET Button on ESC – Supported
LED Program Box – Supported
LCD Program Box – Not Supported
WiFi Module – Not Supported
Program Port – Separate Program Port

Firmware
Firmware Upgrade – Not Supported

Size & Weight
Size – 36.2×31.6×17.0mm
Weight – 58.5g (w/Wires)

Applications
Motors – Brushed Motor (540/550/775 size motors)
Vehicles – 1/8th,1/10th Rock Crawlers
KV Rating/T Count – Brushed Motor Limit with 2S LiPo/6S NiMH: =10T or RPM<[email protected]
Brushed Motor Limit with 3S LiPo/9S NiMH: =16T or RPM<[email protected]
