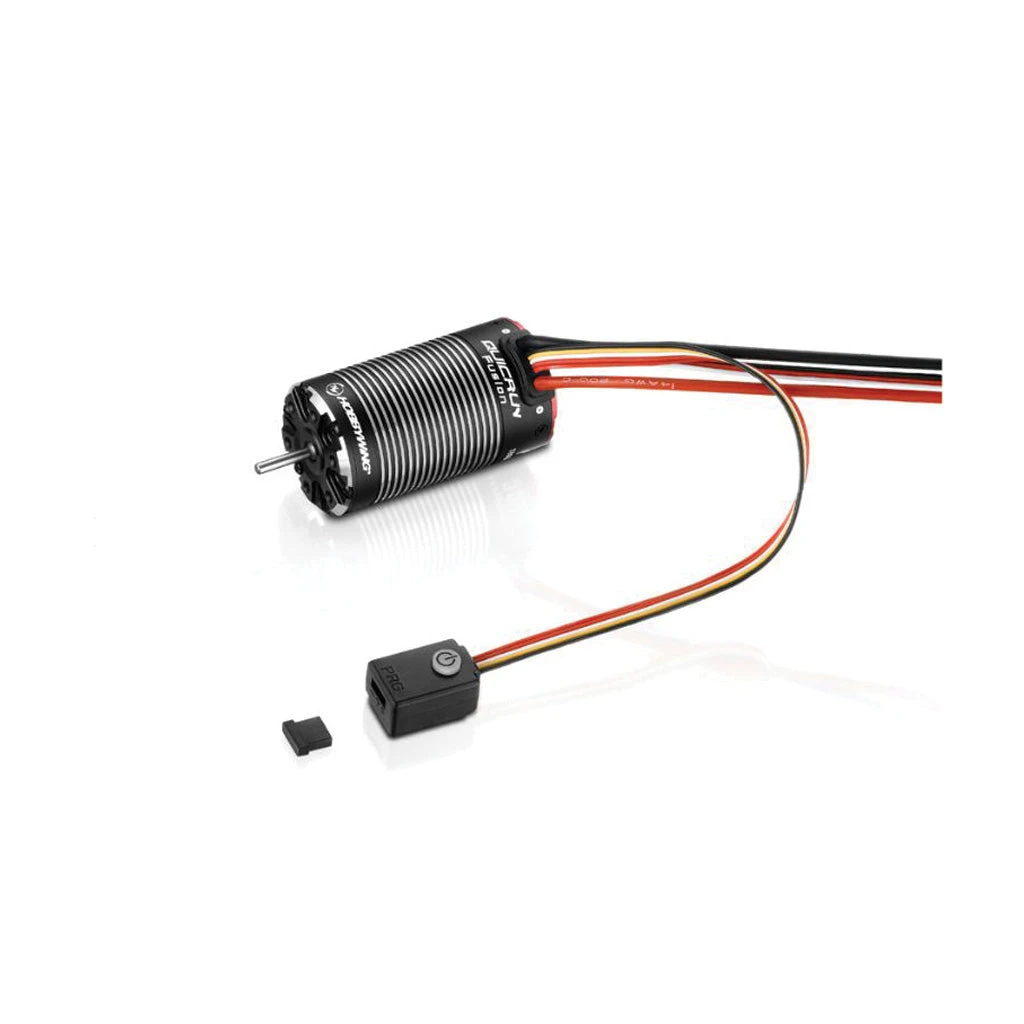

Hobbywing Quicrun Fusion 1800KV Rock Crawler Electric Motor & ESC Combo

Hobbywing QuicRun Fusion speed control and motor system with 1800Kv motor.

Integrated design of Hobbywing’s patent technology

The integrated design of the ESC makes the overall volume is only the size of 550 motor, and the overall weight is only 201g, which makes the layout and wiring of car frame simpler and more beautiful, perfectly solves the difficulty of wiring due to the small internal space of rock crawler.

Intelligent Torque Output & Speed Closed-loop Control for Easy Control

The Fusion system combined with Intelligent Torque output and closed loop speed control mean the power system will maintain the motor’s Torque level and RPM as the vehicles conditions change. Uphill, downhill, under load, the intelligent output torque makes the operation so simple.

Note:If the“RPM/Throttle Matching”be set to “Disabled”, no intelligent torque output & speed closed-loop control, just like brushed system.


FOC (Field-oriented Control) for Super Linearity & High Torque & Extreme Mute

The Fusion system adopts FOC driving mode, low speed torque is strong. It runs smoothly at very low speed, outstripping ordinary sensored power system, even better
than brushed power system. Moreover, the motor is extremely silent when it is running. The driving noise which annoys driver disappears. It is the best choice for rock crawler.

Applicable to All Weather & Track Conditions

The IP-67 waterproof of the whole power has excellent waterproof and dustproof performance. The whole power can easily drive on the muddy, sandy, icy, snowy and water track under various weather conditions.

High Driving Efficiency for Long Battery Life

The whole power adopts FOC driving which has high efficiency and less heat, dramatically extends the Runtime time. Benefitting from the sine wave driving mode, the motor runs more silently and softly.

Professional Drag Brake Adjustments & Super Parking Capacity

8 gears of drag brake force and 9 gears of drag brake rate can meet different car models, different fields and different controlling habits. The maximum drag brake force is about twice that of ordinary brushless power of the same size, providing super strong parking capacity on slope.

Advanced and Secure Electronic Switch

Compare to standard on/off switches, the dust, dirt, and waterproof electronic switch housing ensures a long reliable life for your power system, will not suffer
from the problems that reed stuck and contact rust frequently happed in dusty and damp environment, and the problem that mechanical switch closes automatically caused by fierce impact.

Specifications

Scale – 1/10th

Brushed/Brushless – Brushless

Sensored/Sensorless – Sensored

Waterproof

Cont./Peak Current – 40A/160A

Input Voltage – 2-3S Lipo/6-9 Cell NiMH

BEC Output – 6V/7.4V adjustable, continuous curr ent 4A (Switch mode)

Motor KV – 1200KV,1800KV

Diameter/length of Motor – 36mm/64mm

Shaft diameter / exposed shaft length – 3.175mm/16mm

Motor Poles – 4

Input Wires – Red-14AWG-200mmx1 / Black-14AWG-200mmx1

Input Connectors – XT60

(Note: All the wire length above is the original length not the length you see from the outside.)

SET Button on ESC – Not Supported

LED Program Box – Supported

LCD Program Box – Not Supported

WiFi Module – Not Supported

Program Port – Independent programming interface(switch position)

Firmware Upgrade – Not Supported

Size – 36*64mm

Weight – 201g (including wir e plug)

Vehicles – Various 1/10th rock crawler
