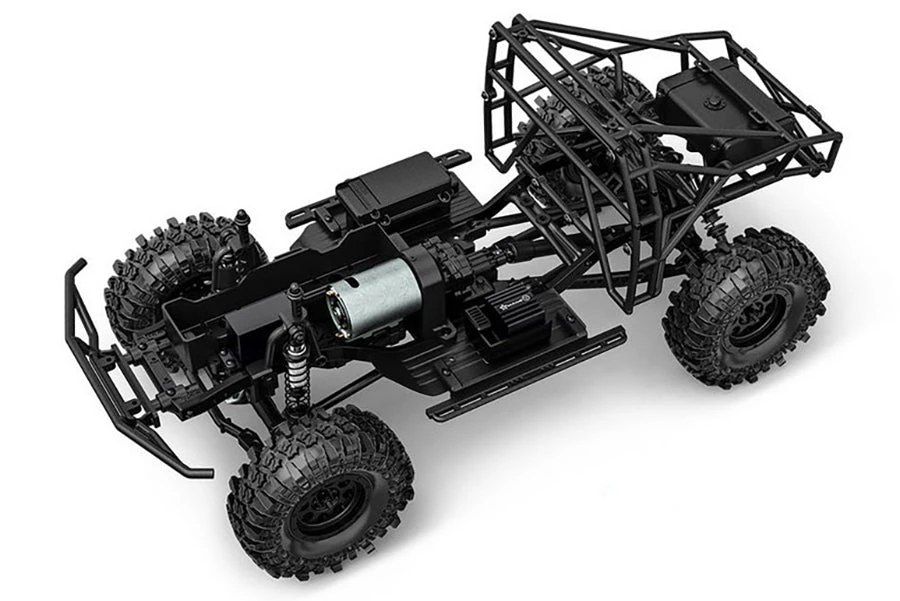

GSO2 CHASSIS

FRAME

STEEL LADDER FRAME

GS02 frame is designed to look as a chassis of a real car frame and the material of the frame is made of high strength steel, C-channel side rail and is with hex wrench bolted with cross members, which make it resistant to twisting of wrapping.
Also, steel parts are black powder coated finish to prevent rust.

C-CHANNEL SIDE RAIL

ADJUSTABLE WHEELBASE

GS02 chassis allows three type of easy adjustment of wheelbase convert kit to use any type of 303, 313 and 324mm custom bodies.
(Optional link kits are sold separatley).

FRONT WEIGHT BALANCE

BOM’s weight balance designed to be placed on the forward of the car.
This will increase the tire traction to the front wheel to provide better crawling on a high tilt angle rocks and better driving performance when hill climbing and this will help minimizing the vehicle’s rolling over when climbing.

CHASSIS MOUNTED SERVO SYSTEM WITH PANHARD BAR

BOM’s steering system has a steering servo on the frame just like a 1:1 real car.
It is designed to make it as closed to the zero bump steer so bump steer movemen t does not appear by front wheel suspension movements.
So we ended up with maximizing the steering performance of the vehicle.
In addition, the Panhard-bar is designed to avoid interference with nearby parts, so that the front suspension and shocks can move freely without any loss.

EASY ADJUST MOTOR MOUNT

You can easily replace and install the motor pinion gear to change the gear ratio.

GA44 AXLE

GA44 axle is designed with the hardcore rock crawler in mind.
Axles are made of high-strength materials, and it will look and perform ptimum off-road performance as real 1:1 vehicle when 4-link suspensions added.

The GA44 axle housing is a durable one-piece type.
The angle of the differential cover is designed to reduce the risk of damamge due to frontal impact and is therefore very suitable for off-road driving.

SUSPENSION

SD SCALER SHOCK ABSORBER

SD Scaler Shock is a Coil-over styled oil shock absorber opimised for the scale trucks.
The oil filled inside the shock minimizes splash when the vehicle is driven, and provides a high-durability aluminium shock body with 3.5mm heavy duty shock shafts are added, these will help you to drive roughly on rough surfaces.
Beginners also can assemble this shock and change setups, and the adjustable nut makes it easy to adjust the ride-height so you can quickly change your car setup even when driving conditions change.

WHEELS 7 TYRES

MT1903

1.9 inch M/T Off-Road Tyre

1’9INCH NR03 WHEEL

Width: 23mm
Diameter: 48mm (1.9inch)
Offset: 0.5mm positive offset
Hex mount: 12mm

PLEASE NOTE: Requires the following for completion: 7.2v battery and compatible charger.
