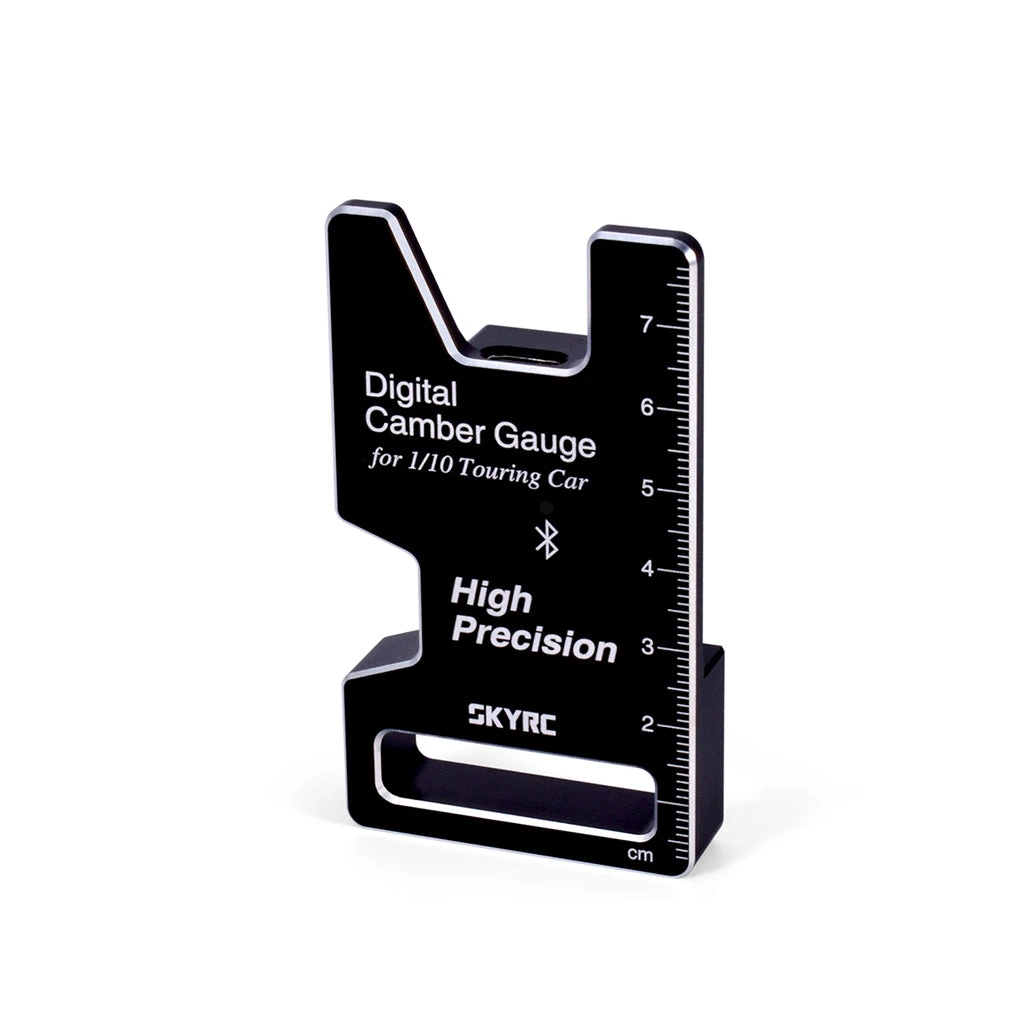

Digital Camber Gauge

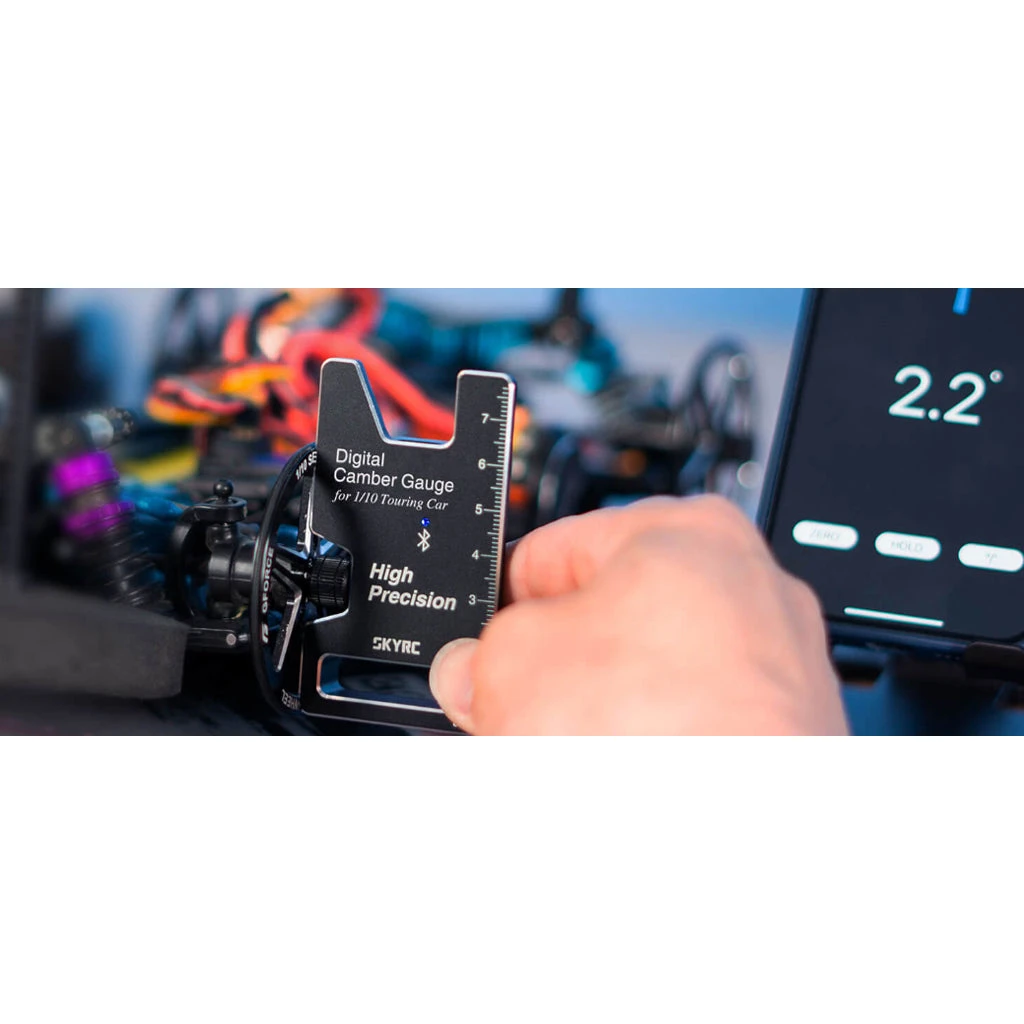

SkyRC CTG-015 Digital Camber Gauge is built with Bluetooth 5.0, which enables a faster and more stable connection. The app instantly displays real-time data once connected.

Even though the groove in the camber gauge is set for 1/10th Touring Car it can be used on 1/10th and 1/8th Off Road (you place the gauge just slightly off from the wheel nut)

Size and Weight
Dimension: 45x12x80mm
Weight: 53g

Working Data
Input Voltage: 5V
Input Current: 200-300mA
Interface: Type C
Battery Type: 3.7V LiPo
Battery Capacity: 200mAh
Working Voltage: 3.4-4.2V
Working Current: ＜10mA
Low-voltage Protection: ＜3.4V (Flashes Red)
Measuring Range: ±17.5°
Measuring Accuracy: ±0.2°
Working Temperature: 0℃-50℃
Working Humidity: 5%-90% (None-condensation)
Storage Temperature: -10℃-50℃
Storage Humidity: 1%-75% (None-condensation)

Includes usb/micro usb charging cable.

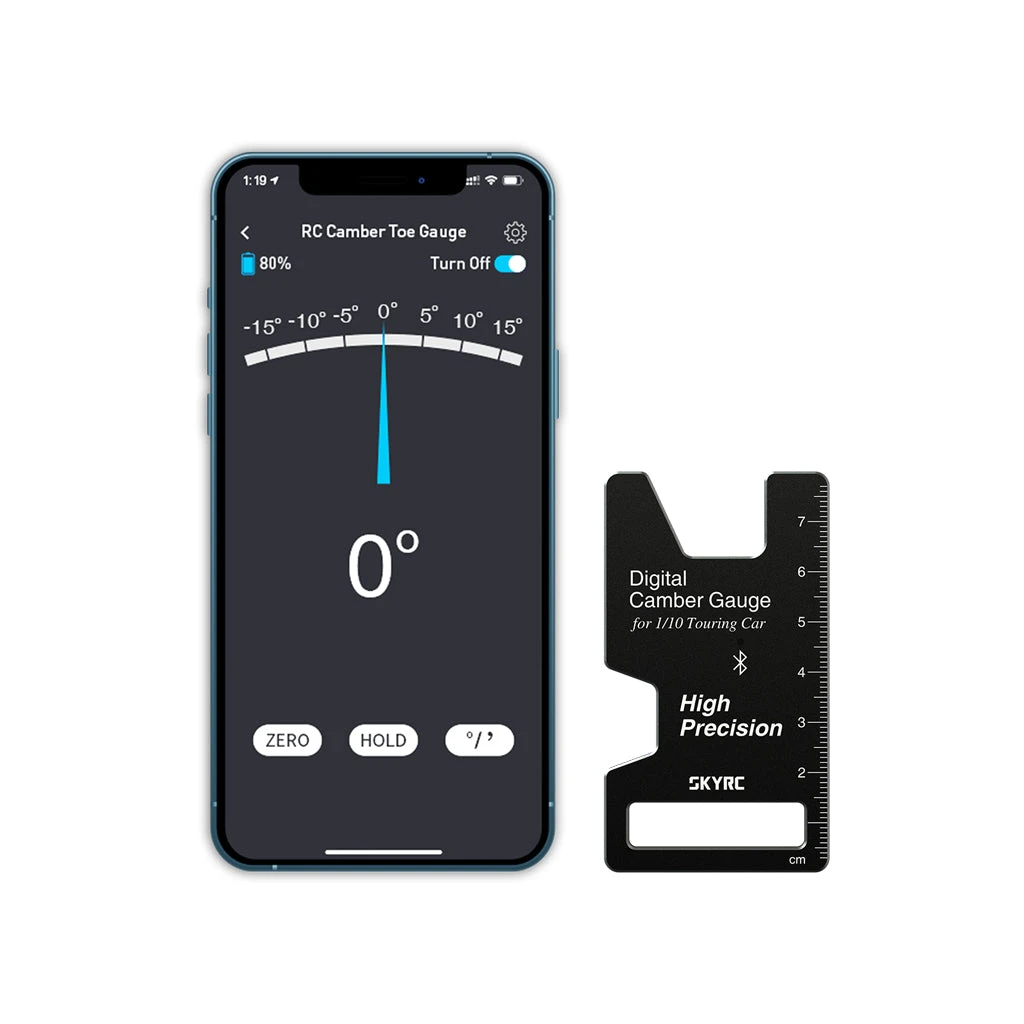

The Sky RC app is available from the App Store or Google Play.
